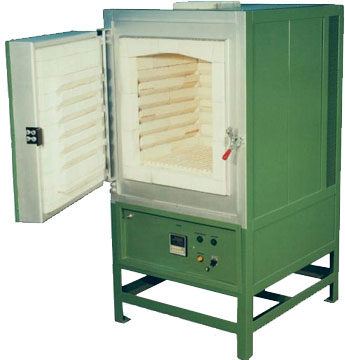

Electric Furnace Industrial

Features

Heavely Hinged 180 Degree Opening Door
Maximum temperature of 2300 Degrees Fahrenheit
High Quality Insulating Brick Backed With Hi-Density Fiberboards
Autotuning Digital Set Point Temperature Controller With +/- 0.3% Precision
Fast Heat Up Rate Recovery
Factory Wired, Assembled And Tested For Simple Set-Up And Operation
Hi-Limit Overshoot Protection
Heavy-Duty Fire Brick Hearth With Removable Hearth Plates
No Operation Noise
Automatic Door Switch To Turn Off The Fans Or Heat When Door Is Open
Heavy 1/4" Structual Frame Lined With 16g. HRS
CSA US Approved Control Panel

Options

Manual Guillotine Door, Pneumatic Guillotine Door, Electric Guillotine Door
Programmable Controls And Timers
Alloy Circulating Fan For Greater Chamber Temperature Uniformily Up To 2100 Degrees Fahrenheit
SCR Power Controls
Process Timer To Shut Down The Furnace
Circular Or Strip Chart Temperature Recorder
Steel And Alloy Trays
Chimney
NiCr Heating Elements
High Power Versions Available
Special Element Arrangements To Accomodate Process
Inert Gas Arrangement

Lane 's heavy-duty furnaces are designed for intensive and continuous use. Equipped with a ramp to set point digital indicating controller, our high temperature furnaces allow you to reach and accurately maintain the desired temperature. In order to minimize the heat up and cool down times, our furnaces are insulated with the best refractory bricks. The temperature control accuracy and the quality of the insulation of our furnaces enable you to achieve maximum performance and efficiency.
Our heavy-duty furnaces offer remarkable performance, long service life and ease of operation. A variety of options enable you to customize our heavy-duty furnaces to meet your process specifications.
