Specifications

• Interior Dimensions: 27.00" W x 27.00" D x 25.00" H
• Exterior Dimensions: 41.75" W x 51.50" D x 67.00" H
• Maximum Temperature 2300 Degrees Fahrenheit (1260 Celsius)
• Voltage: 480/3/60
• Construction: Heavy Duty 1/4" Structural Frame Lined With Hot Rolled Steel
• Insulation: 4 1/2" Of High Quality Low-Density Grooved Bricks (Rated 2600 Degrees Fahrenheit) Backed By 2 1/2" Of High-Density Fiberboard (Rated 1,900 Degrees Fahrenheit)
• Heating Elements: Low Watt Density FeCrAl Spiral Wound
• Heating Elements In Door
• Door: Heavily Hinged 180 Degree Front Opening
• Built In Floor Stand
• Hearth Plate: Corrugated
• Exhaust Vent (Brick)
• Durable Green Enamel Finish
• Aprox. Weight: 1,550 Lbs.

Standard Controls

• Fuji Digital Programmable Temperature Controller Model PXZ4 (1 Program - 4 Segments)
• Controls Located At The Bottom Of The Furnace
• Mechanical Contactor

Available Options

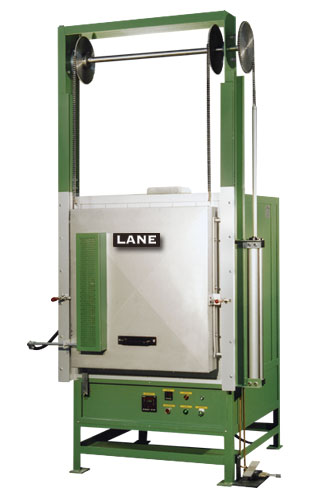

• Pneumatic Guillotine Door (Foot Pedal Activated) For Model IFJ 272725
• Partlow Programmable Temperature Controller Model 1462
• 304SS Complete Door Outer Skin
